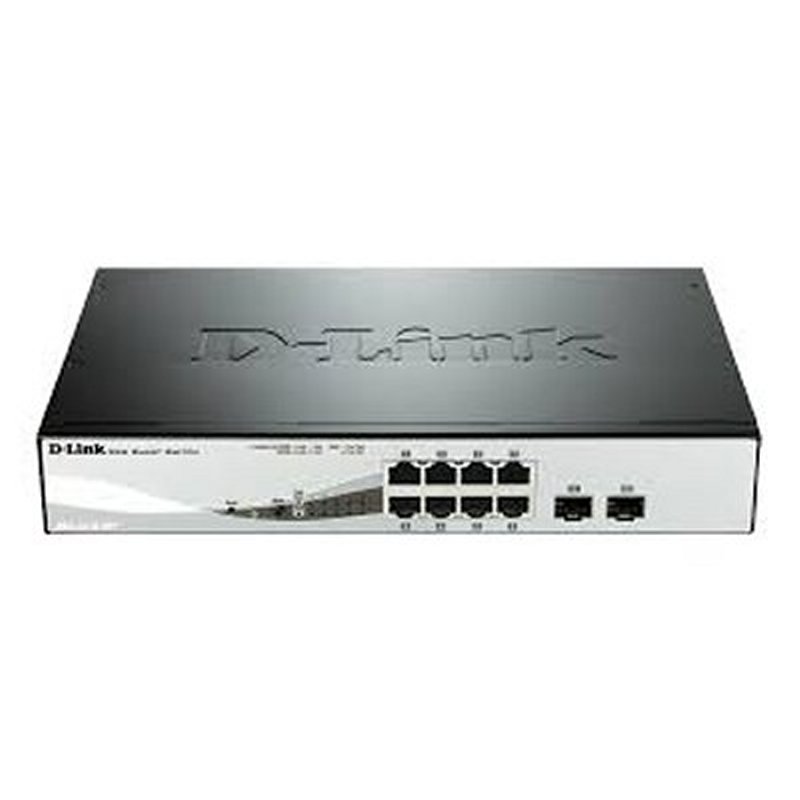

D-Link DGS-1210-08P-E Switch 8xGB PoE 2xSFP

- 8 puertos 10/100/1000 Mbps

Standards
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3ab compliance
- Soporta Half/Full-duplex operation at 10/100Mbps
- Soporta Full-duplex operation at 1000Mbps
- Soporta Auto-Negotiation for each port
- Auto MDI/MDIX
- IEEE 802.3x Flow Control support
- IEEE 802.3az compliant

Rendimiento:
  20Gbps
- Max.velocidad envío
  14.9 Mpps
- Tamaño tabla MAC
  16K Entries
- Packet Buffer
  6Mbits

- Jumbo Frame
  Hasta 13,000 Bytes
- Alimentación:
  110 to 240 VAC, 50/60HZ internal universal power supply
- Max.Consumo
  60 Watts
- Consumo Standy
  5.6 Watts
- Sin ventilador
- Nivel acústico:
  0 dBA
- Dimensions (W x D x H)
  280 x 180 x 44 mm

  19-inch standard rack
  1U
- Peso:
  0.42kg
- LEDs
  Power (per device)
  Link/Activity/Speed/PoE (per 10/100/1000 Mbps port)
  Link/Activity/Speed (per SFP port)
  Button to switch LED display mode between PoE and Link/ActivityPower (per device)
- Certifications
  CE Class A
  cUL, LVD
- MTBF
  503,585 Hours (DGS-1100-08)
Funciones L2
- MAC Address Table: 16K
- Flow Control
    802.3x Flow Control
    HOL Blocking Prevention
- Jumbo Frame up to 13,000 Bytes
- IGMP Snooping
    IGMP v1/v2 Snooping
    IGMP Snooping v3 Awareness
    Supports 256 IGMP groups
    Supports at least 64 static multicast addresses
    IGMP per VLAN
    Supports IGMP Snooping Querier
- MLD Snooping1
    Supports MLD v1/v2 awareness
    Supports 256 groups
    Fast Leave
- Spanning Tree Protocol
    802.1D STP
    802.1w RSTP
- Loopback Detection
- 802.3ad Link Aggregation
    DGS-1210-10P: Max. 5 groups per device/8 ports per group
    DGS-1210-20: Max. 10 groups per device/8 ports per group
    DGS-1210-28/28P: Max. 14 groups per device/8 ports per group
    DGS-1210-52: Max. 26 groups per device/8 ports per group
    DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group
- Port Mirroring
    One-to-One, Many-to-One
    Supports Mirroring for Tx/Rx/Both
- Multicast Filtering
    Forwards all unregistered groups
    Filters all unregistered groups
    LLDP, LLDP-MED
VLAN
- 802.1Q Tagged VLAN
- VLAN Group
    Max. 256 static VLAN groups
    Max. 4094 VIDs
- Management VLAN
- Asymmetric VLAN
- Auto Voice VLAN
    Max. 10 user-defined OUI
    Max. 8 default OUI
- Auto Surveillance VLAN
Quality of Service (QoS)
- 802.1p Quality of Service
- Queue Handling
    Strict
    Weighted Round Robin (WRR)
- 8 queues per port
- Bandwidth Control
    Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s)
- CoS based on
    802.1p Priority Queues
    DSCP
    ToS
    TCP/UDP port number
    IPv6 traffic class1
Access Control List (ACL)
- Max. 50 profiles
- Max. 200 rules shared by profiles
- Single or multiple ports (each rule)
- ACL based on
    MAC Address
    IPv4 Address (ICMP/IGMP/TCP/UDP)
    IPv6 Address (ICMP/TCP/UDP)1
    802.1p
    DSCP
    Ether type
    IPv6 traffic class1
- ACL Actions
    Permit
    Deny
Seguridad
- Port Security
    Supports up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- Static MAC
- D-Link Safeguard Engine
- DHCP Server Screening
- Trusted Host
- ARP Spoofing Prevention
    Max. 64 entries
- SSL
    Supports v1/v2/v3
    Supports IPv4/IPv6
- Traffic Segmentation
- Smart Binding1
    Discover connected devices and click to bind
    ARP Packet Inspection: 512 entries
    IP Packet Inspection: 128 entries
    Supports DHCP Snooping
AAA
- 802.1X Port-based Authentication
    Supports RADIUS Server
    Supports EAP, OTP, TLS, TTLS, PEAP
OAM
- Cable Diagnostics
- Factory Reset
MIB
- 1213 MIB II
- 1493 Bridge MIB
- 1907 SNMP v2 MIB
- 1215 Trap Convention MIB
- 2233 Interface Group MIB
- D-Link Private MIB
- Power-Ethernet MIB
- LLDP MIB
- D-Link ZoneDefense MIB1
RFC Standard Compliance
- RFC 783 TFTP
- RFC 854 Telnet Server
- RFC 951 BootP/DHCP Client
- RFC 1157 SNMP v1, v2, v3
- RFC 1213 MIB II, IF MIB
- RFC 1215 MIB Traps Convention
- RFC 1350 TFTP
- RFC 1493 Bridge MIB
- RFC 1542 BootP/DHCP Client
- RFC 1769 SNTP
- RFC 1901 SNMP v1, v2, v3
- RFC 1907 SNMP v2 MIB
- RFC 1908 SNMP v1, v2, v3
- RFC 2068 FCS
- RFC 2131 BootP/DHCP Client
- RFC 2138 RADIUS Authentication
- RFC 2139 RADIUS Authentication
- RFC 2233 Interface Group MIB
- RFC 2246 SSL
- RFC 2475
- RFC 2570 SNMP v1, v2, v3
- RFC 2575 SNMP v1, v2, v3
- RFC 2598 CoS
- RFC 2616 FCS
- RFC 2618 RADIUS Authentication
- RFC 2819 RMON v1
- RFC 2865 RADIUS Authentication
- RFC 3164 System Log
- RFC 3195 System Log
- RFC 3411-17 SNMP
- RFC 3621 Power Ethernet MIB
Gestión
- Multi-Language Web-based GUI
    English (default)
    Simplified Chinese1
    Traditional Chinese1
    French1
    German1
    Italian1
    Japanese1
    Portuguese1
    Russian1
    Spanish1
- SmartConsole Utility2
- Simplified CLI
- Telnet Server
- TFTP Client
- IPv6 Neighbor Discovery
- Configurable MDI/MDIX
- SNMP
    Supports v1, v2, v3
- SNMP Trap
- System Log
    Max. 500 log entries
- BootP/DHCP Client
- D-Link Network Assistant support1
- SNTP
- ICMPv6
- IPv4/v6 Dual Stack1
- DHCP Auto Configuration
- RMON v1
D-Link Green 3.0 Technology
- Power Saving by:
    Link Status
    Cable Length detection
    LED or Port Shutoff
    Port Standby mode
    System Hibernation mode
    Time-based PoE (PoE model only)
